| PHYSICAL CONSTRUCTION | ||
| CONDUCTOR | MATERIAL | BC/CCS/CCA |
| NOM.DIA | 18AWG | |
| DIELECTRIC | MATERIAL | Foam PE |
| NOM.DIA(MM) | 4.57 | |
| SHIELD | CONSTRUCTION | FOIL+BRAID |
| FOIL MATERIAL | AL FOIL/CU COLOR FOIL | |
| BRAID MATERIAL | BC/CCA/AL | |
| BRAID COVERAG | 95% | |
| JACKET | MATERIAL | PVC |
| NOM.THICK(MM) | 0.80 | |
| NOM.DIA(MM) | 6.91±0.20 | |
| POWER | MATERIAL | 2*7*0.37MMCCA/BC |

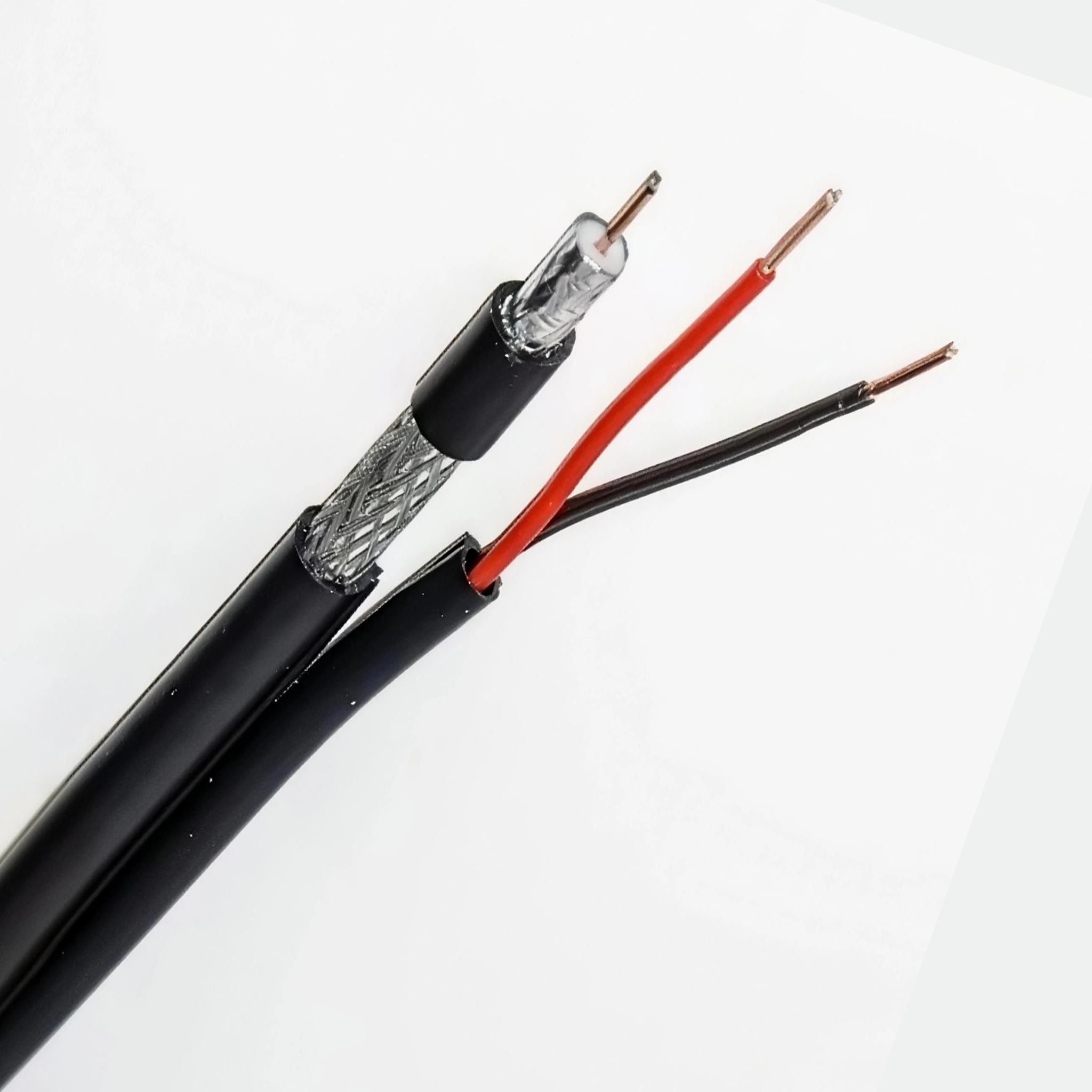

| COAX+POWER | SHOTGUN CONSTRUCTION(6.1*5.0MM) | |
| ELECTRICAL CHARACTERISTICS | |||
| Nominal Impedance(Ω) | 75±3 | ||
| Nominal Velocity of Propagation(%) | 85 | ||
| Nominal Capacitance(pF/m) | 50 | ||
| Sparker Test(VAC) | 4000 | ||
| SRL(dB) | 20 | ||
| Attenuation [@68°F (20°C)] |
Frequency(MHZ) | Maximum(dB/100ft) | Maximum(dB/100m) |
| 5 | 0.58 | 1.90 | |
| 55 | 1.60 | 5.25 | |
| 187 | 2.85 | 9.35 | |
| 300 | 3.55 | 11.64 | |
| 450 | 4.40 | 14.43 | |
| 600 | 5.10 | 16.73 | |
| 750 | 5.65 | 18.54 | |
| 865 | 6.10 | 20.01 | |
| 1000 | 6.55 | 21.49 | |
| 1450 | 7.98 | 26.16 | |
| 1800 | 8.46 | 27.73 | |
| 2250 | 10.38 | 34.03 | |
| 3000 | 11.44 | 37.50 | |
| PHYSICAL CONSTRUCTION | ||
| CONDUCTOR | MATERIAL | BC/CCS/CCA |
| NOM.DIA | 18AWG | |
| DIELECTRIC | MATERIAL | Foam PE |
| NOM.DIA(MM) | 4.57 | |
| SHIELD | CONSTRUCTION | FOIL+BRAID |
| FOIL MATERIAL | AL FOIL/CU COLOR FOIL | |
| BRAID MATERIAL | BC/CCA/AL | |
| BRAID COVERAG | 95% | |
| JACKET | MATERIAL | PVC |
| NOM.THICK(MM) | 0.80 | |
| NOM.DIA(MM) | 6.91±0.20 | |
| POWER | MATERIAL | 2*7*0.37MMCCA/BC |
| COAX+POWER | SHOTGUN CONSTRUCTION(6.1*5.0MM) | |
| ELECTRICAL CHARACTERISTICS | |||
| Nominal Impedance(Ω) | 75±3 | ||
| Nominal Velocity of Propagation(%) | 85 | ||
| Nominal Capacitance(pF/m) | 50 | ||
| Sparker Test(VAC) | 4000 | ||
| SRL(dB) | 20 | ||
| Attenuation [@68°F(20℃)] |
Frequency(MHZ) | Maximum(dB/100ft) | Maximum(dB/100m) |
| 5 | 0.58 | 1.90 | |
| 55 | 1.60 | 5.25 | |
| 187 | 2.85 | 9.35 | |
| 300 | 3.55 | 11.64 | |
| 450 | 4.40 | 14.43 | |
| 600 | 5.10 | 16.73 | |
| 750 | 5.65 | 18.54 | |
| 865 | 6.10 | 20.01 | |
| 1000 | 6.55 | 21.49 | |
| 1450 | 7.98 | 26.16 | |
| 1800 | 8.46 | 27.73 | |
| 2250 | 10.38 | 34.03 | |
| 3000 | 11.44 | 37.50 | |
