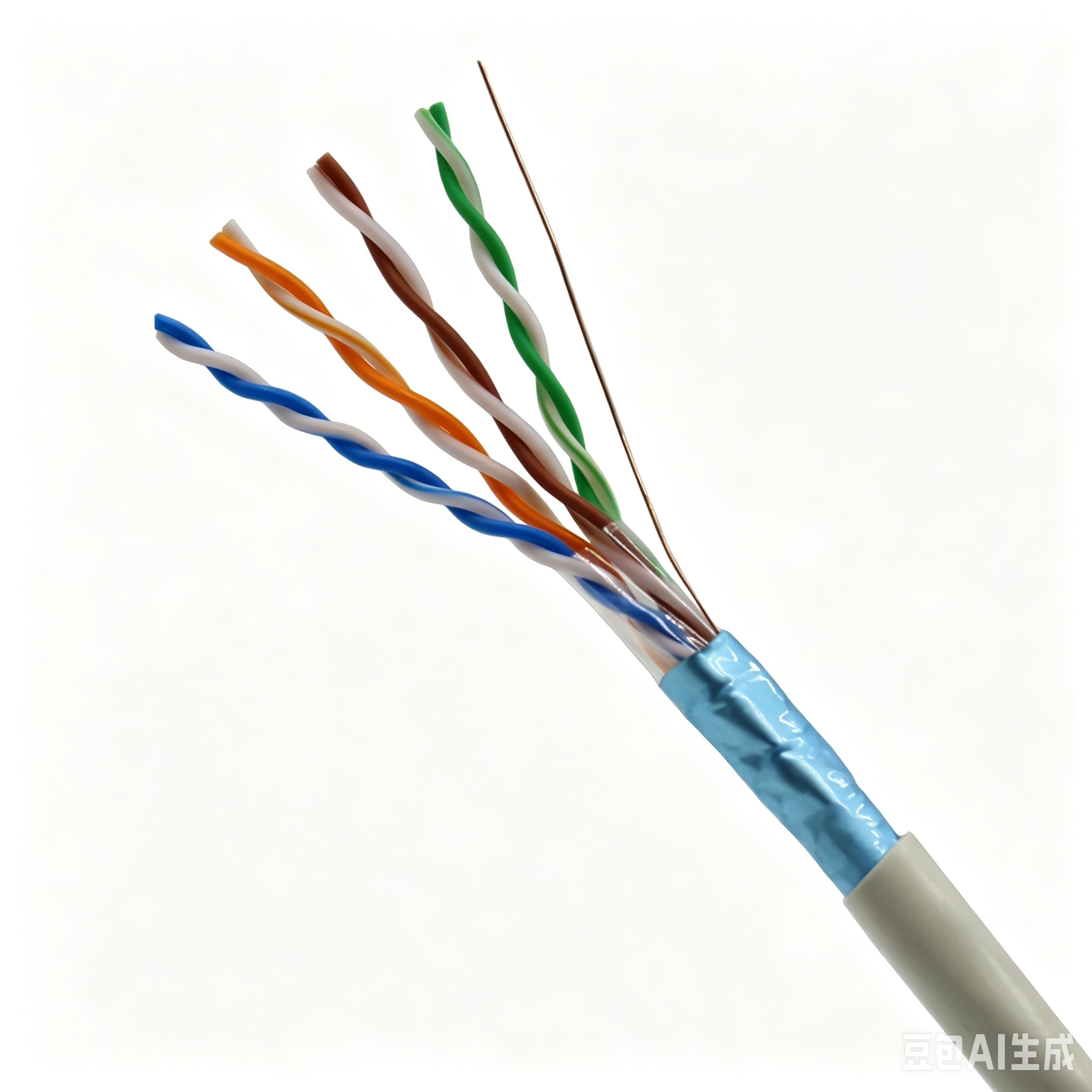

FTP CAT5e
| CAT5E is mainly used for Internet data transmission. |
| 1. Package: empty rolls, PULL BOX |
| 2. Certificate:CE ROHS ETL UL CPR |
| 3. Free samples |
| 4. Provide test report |
| 5. Stable quality, complete testing equipment |
Specification
Cable Construction(CAT6)
| Item No. | 224102 | 224202 |
| Construction | FTP | FTP |
| Conductor Dimension(Mm) | 0.515 | 0.515 |
| Core Dimension(Mm) | 0.93 | 0.93 |
| No.Of Pairs | 4 | 4 |
| Nom.Od(Mm) | 6.3 | 6.3 |
| Type Of Jacket | PE/PVC/LSZH | PE/PVC/LSZH |
| Remark | 100mhz | 100mhz |
| Messenger | / | 1.3mm Steel |
Electrical Characteristics
| Frequency(Mhz) | 1 | 4 | 8 | 10 | 16 | 20 | 25 |
| Impedance(ω) | 100±15 | 100±15 | 100±15 | 100±15 | 100±15 | 100±15 | 100±15 |
| RI(Db) | 20 | 23 | 25 | 25 | 25 | 25 | 24 |
| Attenuation(Db/100m) | 2.0 | 4.1 | 5.8 | 6.5 | 8.2 | 9.3 | 10.4 |
| Next(Db/100m) | 65.3 | 56.3 | 51.8 | 50.3 | 47.3 | 48.5 | 44.3 |
| Elfext(Db/100m) | 63.8 | 51.7 | 45.7 | 43.8 | 39.7 | 37.7 | 35.8 |
| Ps Next(Db/100m) | 62.3 | 53.3 | 48.8 | 47.3 | 44.2 | 42.8 | 41.3 |
| Ps Elfext(Db/100m) | 60.8 | 48.7 | 42.7 | 40.8 | 40.8 | 36.7 | 34.7 |
| Propagation Speed(m/s) | 0.65c | ||||||
| Frequency(Mhz) | 31.5 | 62.5 | 100 | 155 | 200 | 310 | 350 |
| Impedance(w) | 100±15 | 100±15 | 100±15 | 100±18 | 100±22 | 100±22 | 100±22 |
| Attenuation(Db/100m) | 24 | 22 | 20 | 19 | 19 | 18 | 17 |
| RI(Db) | 11.6 | 17.0 | 22.0 | 28.1 | 32.4 | 41.8 | 44.9 |
| Attenuation(Db/100m) | 42.9 | 38.4 | 35.3 | 33.0 | 31.0 | 28.0 | 27.0 |
| Elfext(Db/100m) | 33.9 | 27.8 | 23.8 | 20.0 | 18.0 | 14.0 | 13.0 |
| Ps Next(Db/100m) | 39.9 | 35.4 | 32.3 | 29.0 | 28.0 | 25.0 | 24.0 |
| Ps Elfext(Db/100m) | 30.9 | 24.8 | 20.8 | 17.0 | 15.0 | 11.0 | 10.0 |
| Propagation Speed(m/s) | 0.65c | ||||||
